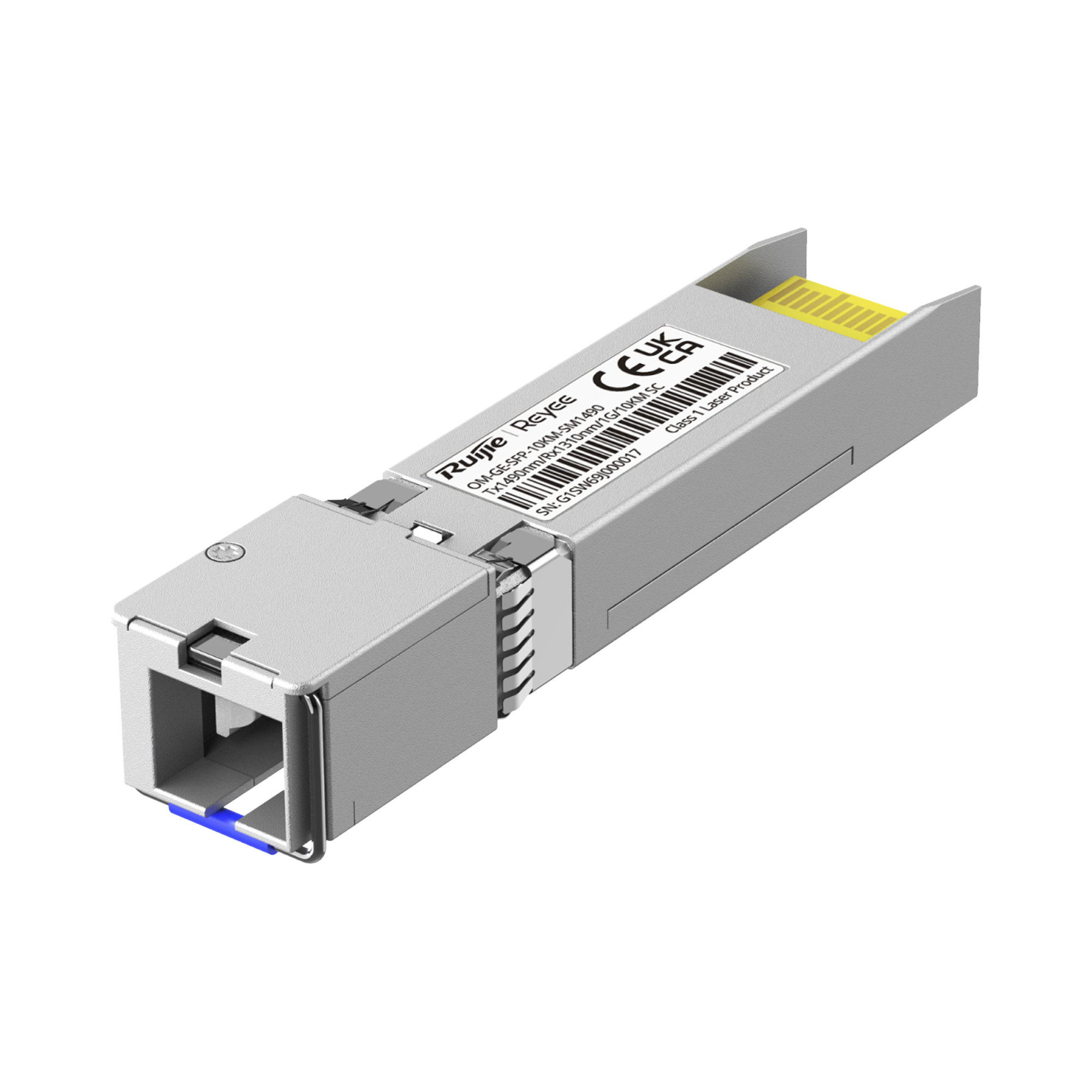

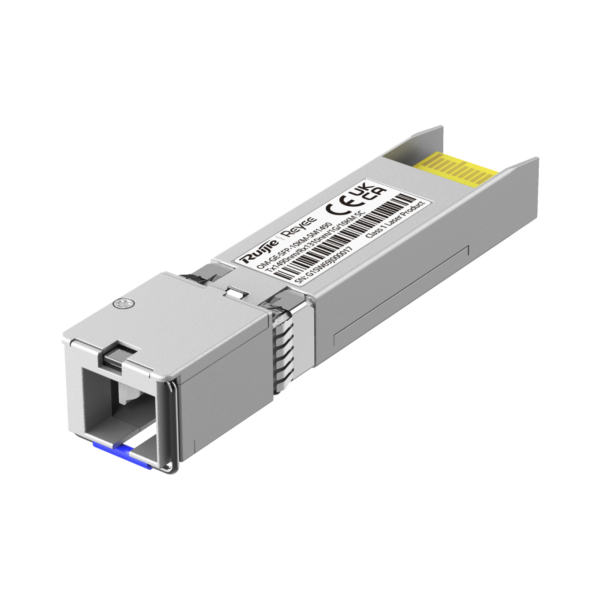

e-Lighten Transceptor PON / Mini-Gbic SFP 1GB Monomodo SC hasta10 Km
- Precios incluyen IVA.
- Precio sujeto a cambio sin previo aviso.
- Inventario aproximado sujeto a cambio sin previo aviso.
- Favor de solicitar cotización para confirmar costo de envío y existencia.
Key Specification
Operating Voltage
3.14 V to 3.46 V
Max. Power Consumption
1.5 W
Operating Temperature
0°C to 70°C (32°F to 158°F)
Storage Temperature
–40°C to +85°C (–40°F to +185°F)
Operating Humidity
5ï¼… to 85ï¼…
Tx Wavelength
1480 nm to 1500 nm
Rx Wavelength
1290 nm to 1330 nm
Tx Power
3 to 7 dBm
Rx Power
–32 to –12 dBm
Weight
0.035 kg (0.08 lbs.)
Receiver Sensitivity
–32 dBm
Tx Rate
1.25 Gbps
